Your message?
Notice: To avoid posts by spam, a message body without the word '#FuguIta' is rejected.
Please include the word in your message text.
m3th (2021-05-16 (Sun) 00:09:53)
>Notice: To avoid posts by spam, a message body without the word '#FuguIta' is rejected.
It is very difficult to post message here.#FuguIta
I would like to ask a noasks file on website.
My noasks file always ignore me. could you tell me your article as example on website?# FuguIta system device noask_rdev='sd0a' # storage device noask_confdev='sd0d' noask_confdev='sd1d'Which should I use as noask_confdev value?
WhileCopying files from flash to ram ...appears, I sometimes get
softraid0: sd3: i/o error5 @crypt blockerror message.
Could you have any idea to solve this problem?
# mount -uw /sysmedia # make sd0a writable (assume /sysmedia mounted mounted on sd0a) # cp noasks /sysmedia # put noasks file on it # mount -ur /sysmedia # make sd0a read only again # reboot # reboot to testThe contents of the noasks file will look like this
# FuguIta system device noask_rdev=sd0a # # tmpfs size in MB noask_umem=0 # # boot mode noask_setup_rw_mode=3 # # storage device noask_confdev=sd0d # put your encrypted partition # # data set name in USB flash drive noask_confdir=YOUR-CONFIG-NAMEWhen this noasks file is read, FuguIta will stop with the input of the passphrase.
-- kaw 2021-05-16 (Sun) 06:35:46
# mount -o async,noatime /dev/sdXd /mnt # cd /mnt/livecd-config/VER/ARCH # rm -rf YOUR-OLD-CONFDIRS # cd # umount /mnt
#FuguIta -- kaw 2021-05-16 (Sun) 14:05:40
kaw (2021-05-14 (Fri) 12:20:44)
Another new tool, remaster_dvd.sh, was introduced in FuguIta 6.9.
As the name suggests, it remasters FuguIta LiveDVD ISO images.
This tool can be used with either a running FuguIta LiveDVD or FuguIta LiveUSB.
The following is an example of remaster_dvd.sh usage.
First, create a working directory and copy the contents of LiveDVD under sysmedia.
fuguita69# mkdir work fuguita69# cd work fuguita69# cp -av /sysmedia . /sysmedia -> ./sysmedia /sysmedia/boot -> ./sysmedia/boot /sysmedia/bsd-fi -> ./sysmedia/bsd-fi /sysmedia/bsd-fi.mp -> ./sysmedia/bsd-fi.mp /sysmedia/boot.catalog -> ./sysmedia/boot.catalog /sysmedia/cdboot -> ./sysmedia/cdboot /sysmedia/cdbr -> ./sysmedia/cdbr /sysmedia/etc -> ./sysmedia/etc /sysmedia/etc/boot.conf -> ./sysmedia/etc/boot.conf /sysmedia/etc/random.seed -> ./sysmedia/etc/random.seed /sysmedia/fuguita-6.9-amd64.ffsimg -> ./sysmedia/fuguita-6.9-amd64.ffsimg fuguita69# ls -l total 8 drwxr-xr-x 3 root wheel 432 May 11 09:21 sysmedia
In the copied sysmedia directory, run remaster_dvd.sh. This is basically all there is to it.
fuguita69# cd sysmedia fuguita69# ls -l total 2008728 -rw-r--r-- 1 root wheel 90496 May 10 20:57 boot -rwxr--r-- 1 root wheel 2048 May 9 12:31 boot.catalog -rw-r--r-- 1 root wheel 10273019 May 10 21:04 bsd-fi -rw-r--r-- 1 root wheel 10302063 May 10 21:04 bsd-fi.mp -rw-r--r-- 1 root bin 91668 May 10 01:31 cdboot -rw-r--r-- 1 root bin 2048 May 10 01:31 cdbr drwxr-xr-x 2 root wheel 96 Apr 17 2014 etc -rw-r--r-- 1 root wheel 1007681536 May 10 21:08 fuguita-6.9-amd64.ffsimg fuguita69# remaster_dvd.sh mkhybrid 1.12b5.1 Scanning . Scanning ./etc Size of boot image is 4 sectors -> No-emulation CD boot sector Total translation table size: 0 Total rockridge attributes bytes: 1111 Total directory bytes: 2048 Path table size(bytes): 22 502200 extents written (980 Mb)
When the execution of remaster_dvd.sh is completed, an ISO image file will have been created in the working directory.
fuguita69# ls -l .. total 2008808 -rw-r--r-- 1 root wheel 1028505600 May 14 02:34 FuguIta-6.9-amd64-202105141.iso drwxr-xr-x 3 root wheel 384 May 14 02:34 sysmedia fuguita69# ls -l total 2008720 -rw-r--r-- 1 root wheel 90496 May 10 20:57 boot -rwxr--r-- 1 root wheel 2048 May 14 02:34 boot.catalog -rw-r--r-- 1 root wheel 10273019 May 10 21:04 bsd-fi -rw-r--r-- 1 root wheel 10302063 May 10 21:04 bsd-fi.mp -rw-r--r-- 1 root bin 91668 May 10 01:31 cdboot -rw-r--r-- 1 root bin 2048 May 10 01:31 cdbr drwxr-xr-x 2 root wheel 96 Apr 17 2014 etc -rw-r--r-- 1 root wheel 1007681536 May 10 21:08 fuguita-6.9-amd64.ffsimg
In sysmedia, you will find a file called like fuguita-6.9-amd64.ffsimg, which contains the FuguIta file tree. By modifying the files in this file tree, you can customize LiveDVD.
fuguita69# vnconfig vnd0 fuguita-6.9-amd64.ffsimg fuguita69# mount /dev/vnd0a /mnt fuguita69# ls -l /mnt total 52 -rw-r--r-- 1 root wheel 578 May 7 17:43 .cshrc -rw-r--r-- 1 root wheel 468 May 7 17:43 .profile drwxr-xr-x 2 root wheel 512 May 7 17:43 altroot drwxr-xr-x 2 root wheel 1024 May 7 17:46 bin drwxr-xr-x 2 root wheel 512 May 8 04:16 dev drwxr-xr-x 23 root wheel 1536 May 8 04:35 etc drwxr-xr-x 2 root wheel 512 May 7 17:43 home drwxr-xr-x 2 root wheel 512 May 7 17:43 mnt drwx------ 3 root wheel 512 May 8 04:35 root drwxr-xr-x 2 root wheel 1536 May 7 17:46 sbin lrwxrwx--- 1 root wheel 11 May 7 17:43 sys -> usr/src/sys drwxrwxrwt 2 root wheel 512 May 8 04:19 tmp drwxr-xr-x 14 root wheel 512 May 8 04:09 usr drwxr-xr-x 23 root wheel 512 May 7 17:43 var .... modify files as you like ...
Once the customization is complete, close the file system image and remaster it.
fuguita69# umount /mnt fuguita69# vnconfig -u vnd0 fuguita69# remaster_dvd.sh mkhybrid 1.12b5.1 Scanning . Scanning ./etc : :
kaw (2021-05-12 (Wed) 11:05:49)
FuguIta 6.9 provides a new tool to change network settings. The following is an example of its use.
In the new 6.9 release, network-related configuration files are stored in a subdirectory under /etc/netconfs, and symbolic links are provided from /etc to these files.
The settings you made during the initial boot are located in /etc/netconfs/default.
fuguita69# cd /etc
fuguita69# ls -l | grep netconfs
lrwxr-xr-x 1 root wheel 27 May 12 00:49 hosts -> /etc/netconfs/default/hosts
lrwxr-xr-x 1 root wheel 28 May 12 00:49 myname -> /etc/netconfs/default/myname
drwxr-xr-x 3 root wheel 48 May 12 00:49 netconfs
lrwxr-xr-x 1 root wheel 33 May 12 00:49 resolv.conf -> /etc/netconfs/default/resolv.conf
lrwxr-xr-x 1 root wheel 33 May 12 00:49 sysctl.conf -> /etc/netconfs/default/sysctl.conf
fuguita69# ifconfig
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> mtu 32768
index 3 priority 0 llprio 3
groups: lo
inet6 ::1 prefixlen 128
inet6 fe80::1%lo0 prefixlen 64 scopeid 0x3
inet 127.0.0.1 netmask 0xff000000
msk0: flags=8802<BROADCAST,SIMPLEX,MULTICAST> mtu 1500
lladdr 00:17:42:6b:8a:92
index 1 priority 0 llprio 3
groups: egress
media: Ethernet autoselect (100baseTX full-duplex,rxpause,txpause)
status: active
enc0: flags=0<>
index 2 priority 0 llprio 3
groups: enc
status: active
run0: flags=8802<BROADCAST,SIMPLEX,MULTICAST> mtu 1500
lladdr cc:e1:d5:15:0e:cb
index 4 priority 4 llprio 3
groups: wlan
media: IEEE802.11 autoselect (DS1 mode 11g)
status: no network
ieee80211: nwid ""
pflog0: flags=141<UP,RUNNING,PROMISC> mtu 33136
index 5 priority 0 llprio 3
groups: pflog
As an example, let's add two settings, home and office.
First, let's start with office. This assumes an Ethernet connection and a fixed address configuration.
To add a new configuration, create a directory under /etc/netconfs.
fuguita69# cd /etc/netconfs fuguita69# ls -l total 8 drwxr-xr-x 2 root wheel 192 May 12 00:41 default fuguita69# mkdir office
To create the configuration file, use the gennetconfs utility that is traditionally provided.
Its usage is the same as the configuration done in the initial boot.
fuguita69# cd office
fuguita69# gennetconfs
host name (without domain) -> fuguita
IP version(s) to use: 4, 6, 46, 64 or n
46: IPv4 preferred over IPv6 in address resolution
64: reversed to 46
n: stand alone operation
[46]-> 4
==[ifconfig -a]=========================
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> mtu 32768
index 3 priority 0 llprio 3
groups: lo
inet6 ::1 prefixlen 128
inet6 fe80::1%lo0 prefixlen 64 scopeid 0x3
inet 127.0.0.1 netmask 0xff000000
msk0: flags=8802<BROADCAST,SIMPLEX,MULTICAST> mtu 1500
lladdr 00:17:42:6b:8a:92
index 1 priority 0 llprio 3
groups: egress
media: Ethernet autoselect (100baseTX full-duplex,rxpause,txpause)
status: active
enc0: flags=0<>
index 2 priority 0 llprio 3
groups: enc
status: active
run0: flags=8802<BROADCAST,SIMPLEX,MULTICAST> mtu 1500
lladdr cc:e1:d5:15:0e:cb
index 4 priority 4 llprio 3
groups: wlan
media: IEEE802.11 autoselect (DS1 mode 11g)
status: no network
ieee80211: nwid ""
pflog0: flags=141<UP,RUNNING,PROMISC> mtu 33136
index 5 priority 0 llprio 3
groups: pflog
========================================
Available network interface(s): msk0 run0
network interface to setup [msk0] -> msk0
FQDN of this host -> fuguita.office.local
DNS setup;
Manual : Enter up to three IPv4/IPv6 addresses, separated by spaces
DHCP : Just press ENTER .
no DNS : Enter "none".
-> 192.168.20.254
IPv4 addr of this host -> 192.168.20.115
netmask -> 255.255.255.0
default route -> 192.168.20.254
When the configuration using gennetconfs is completed, the configuration file will be created in the subdirectory you just created.
fuguita69# ls -l total 48 -rw-r----- 1 root wheel 37 May 12 01:14 hostname.msk0 -rw-r--r-- 1 root wheel 82 May 12 01:14 hosts -rw-r--r-- 1 root wheel 12 May 12 01:14 mygate -rw-r--r-- 1 root wheel 21 May 12 01:14 myname -rw-r--r-- 1 root wheel 73 May 12 01:14 resolv.conf -rw-r--r-- 1 root wheel 106 May 12 01:14 sysctl.conf fuguita69# ls -l /etc/ | grep netconfs lrwxr-xr-x 1 root wheel 27 May 12 00:49 hosts -> /etc/netconfs/default/hosts lrwxr-xr-x 1 root wheel 28 May 12 00:49 myname -> /etc/netconfs/default/myname drwxr-xr-x 4 root wheel 96 May 12 01:13 netconfs lrwxr-xr-x 1 root wheel 33 May 12 00:49 resolv.conf -> /etc/netconfs/default/resolv.conf lrwxr-xr-x 1 root wheel 33 May 12 00:49 sysctl.conf -> /etc/netconfs/default/sysctl.conf
To make these settings actually take effect, use the chnetconf utility.
When you run chnetconf, it will create symbolic links from /etc to these files, and then run /etc/netstart internally to modify the configuration.
fuguita69# chnetconf
16.0K default
28.0K office
fuguita69# chnetconf office
fuguita69# ls -l /etc/ | grep netconfs
lrwxr-xr-x 1 root wheel 34 May 12 01:15 hostname.msk0 -> /etc/netconfs/office/hostname.msk0
lrwxr-xr-x 1 root wheel 26 May 12 01:15 hosts -> /etc/netconfs/office/hosts
lrwxr-xr-x 1 root wheel 27 May 12 01:15 mygate -> /etc/netconfs/office/mygate
lrwxr-xr-x 1 root wheel 27 May 12 01:15 myname -> /etc/netconfs/office/myname
drwxr-xr-x 4 root wheel 96 May 12 01:13 netconfs
lrwxr-xr-x 1 root wheel 32 May 12 01:15 resolv.conf -> /etc/netconfs/office/resolv.conf
lrwxr-xr-x 1 root wheel 32 May 12 01:15 sysctl.conf -> /etc/netconfs/office/sysctl.conf
fuguita69# ifconfig
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> mtu 32768
index 3 priority 0 llprio 3
groups: lo
inet6 ::1 prefixlen 128
inet6 fe80::1%lo0 prefixlen 64 scopeid 0x3
inet 127.0.0.1 netmask 0xff000000
msk0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> mtu 1500
lladdr 00:17:42:6b:8a:92
index 1 priority 0 llprio 3
groups: egress
media: Ethernet autoselect (100baseTX full-duplex,rxpause,txpause)
status: active
inet 192.168.20.115 netmask 0xffffff00 broadcast 192.168.1.255
enc0: flags=0<>
index 2 priority 0 llprio 3
groups: enc
status: active
run0: flags=8802<BROADCAST,SIMPLEX,MULTICAST> mtu 1500
lladdr cc:e1:d5:15:0e:cb
index 4 priority 4 llprio 3
groups: wlan
media: IEEE802.11 autoselect (DS1 mode 11g)
status: no network
ieee80211: nwid ""
pflog0: flags=141<UP,RUNNING,PROMISC> mtu 33136
index 5 priority 0 llprio 3
groups: pflog
fuguita69# ping www.google.com
PING www.google.com (172.217.175.68): 56 data bytes
64 bytes from 172.217.175.68: icmp_seq=0 ttl=115 time=28.318 ms
64 bytes from 172.217.175.68: icmp_seq=1 ttl=115 time=25.842 ms
64 bytes from 172.217.175.68: icmp_seq=2 ttl=115 time=26.137 ms
^C
--- www.google.com ping statistics ---
3 packets transmitted, 3 packets received, 0.0% packet loss
round-trip min/avg/max/std-dev = 25.842/26.765/28.318/1.104 ms
Continuing on, let's create a home configuration as well. This one assumes a WiFi connection and DHCP is used.
fuguita69# pwd
/etc/netconfs/office
fuguita69# mkdir /etc/netconfs/home
fuguita69# cd /etc/netconfs/home
fuguita69# gennetconfs
host name (without domain) -> fuguita
IP version(s) to use: 4, 6, 46, 64 or n
46: IPv4 preferred over IPv6 in address resolution
64: reversed to 46
n: stand alone operation
[46]-> 46
==[ifconfig -a]=========================
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> mtu 32768
index 3 priority 0 llprio 3
groups: lo
inet6 ::1 prefixlen 128
inet6 fe80::1%lo0 prefixlen 64 scopeid 0x3
inet 127.0.0.1 netmask 0xff000000
msk0: flags=8843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST> mtu 1500
lladdr 00:17:42:6b:8a:92
index 1 priority 0 llprio 3
groups: egress
media: Ethernet autoselect (100baseTX full-duplex,rxpause,txpause)
status: active
inet 192.168.20.115 netmask 0xffffff00 broadcast 192.168.1.255
enc0: flags=0<>
index 2 priority 0 llprio 3
groups: enc
status: active
run0: flags=8802<BROADCAST,SIMPLEX,MULTICAST> mtu 1500
lladdr cc:e1:d5:15:0e:cb
index 4 priority 4 llprio 3
groups: wlan
media: IEEE802.11 autoselect (DS1 mode 11g)
status: no network
ieee80211: nwid ""
pflog0: flags=141<UP,RUNNING,PROMISC> mtu 33136
index 5 priority 0 llprio 3
groups: pflog
========================================
Available network interface(s): msk0 run0
network interface to setup [msk0] -> run0
FQDN of this host -> fuguita.home.local
Wi-Fi SSID -> WIFI-SSID
WPA Key -> WPA-PASSWD
DNS setup;
Manual : Enter up to three IPv4/IPv6 addresses, separated by spaces
DHCP : Just press ENTER .
no DNS : Enter "none".
->
fuguita69# ls -l
total 40
-rw-r----- 1 root wheel 59 May 12 01:29 hostname.run0
-rw-r--r-- 1 root wheel 76 May 12 01:29 hosts
-rw-r--r-- 1 root wheel 19 May 12 01:29 myname
-rw-r--r-- 1 root wheel 0 May 12 01:29 resolv.conf
-rw-r--r-- 1 root wheel 54 May 12 01:29 resolv.conf.tail
-rw-r--r-- 1 root wheel 106 May 12 01:29 sysctl.conf
fuguita69# chnetconf
16.0K default
24.0K home
28.0K office
fuguita69# chnetconf home
run0: no link....got link
run0: 192.168.10.61 lease accepted from 192.168.10.231 (f8:b7:97:2d:89:66)
fuguita69# ifconfig
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> mtu 32768
index 3 priority 0 llprio 3
groups: lo
inet6 ::1 prefixlen 128
inet6 fe80::1%lo0 prefixlen 64 scopeid 0x3
inet 127.0.0.1 netmask 0xff000000
msk0: flags=8802<BROADCAST,SIMPLEX,MULTICAST> mtu 1500
lladdr 00:17:42:6b:8a:92
index 1 priority 0 llprio 3
media: Ethernet autoselect (100baseTX full-duplex,rxpause,txpause)
status: active
enc0: flags=0<>
index 2 priority 0 llprio 3
groups: enc
status: active
run0: flags=248843<UP,BROADCAST,RUNNING,SIMPLEX,MULTICAST,AUTOCONF6TEMP,AUTOCONF6> mtu 1500
lladdr cc:e1:d5:15:0e:cb
index 4 priority 4 llprio 3
groups: wlan egress
media: IEEE802.11 autoselect (DS1 mode 11g)
status: active
ieee80211: nwid WIFI-SSID chan 11 bssid 1c:b1:7f:27:5c:de -61dBm wpakey wpaprotos wpa2 wpaakms psk
wpaciphers ccmp wpagroupcipher ccmp
inet 192.168.10.61 netmask 0xffffff00 broadcast 192.168.10.255
inet6 fe80::cee1:d5ff:fe15:ecb%run0 prefixlen 64 scopeid 0x4
inet6 2409:xx:xxxx:xxxx:669c:3666:1e5d:1e95 prefixlen 64 autoconf pltime 604797 vltime 2591997
inet6 2409:xx:xxxx:xxxx:ded5:bc35:e07a:fa89 prefixlen 64 autoconf temporary pltime 84961 vltime 172794
pflog0: flags=141<UP,RUNNING,PROMISC> mtu 33136
index 5 priority 0 llprio 3
groups: pflog
We have now created three network configurations, including the default.
You can switch between these settings at any time using the chnetconf utility.
Mel (2021-05-11 (Tue) 14:26:19)
in front page of #FuguIta there is "Patch 001 of OpenBSD 6.9 has been applied."
when you click on the link, it goes to OpenBSD 6.8 list of patches.
kaw (2021-05-01 (Sat) 08:06:34)

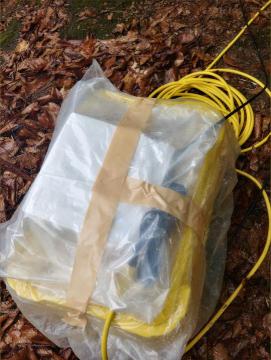

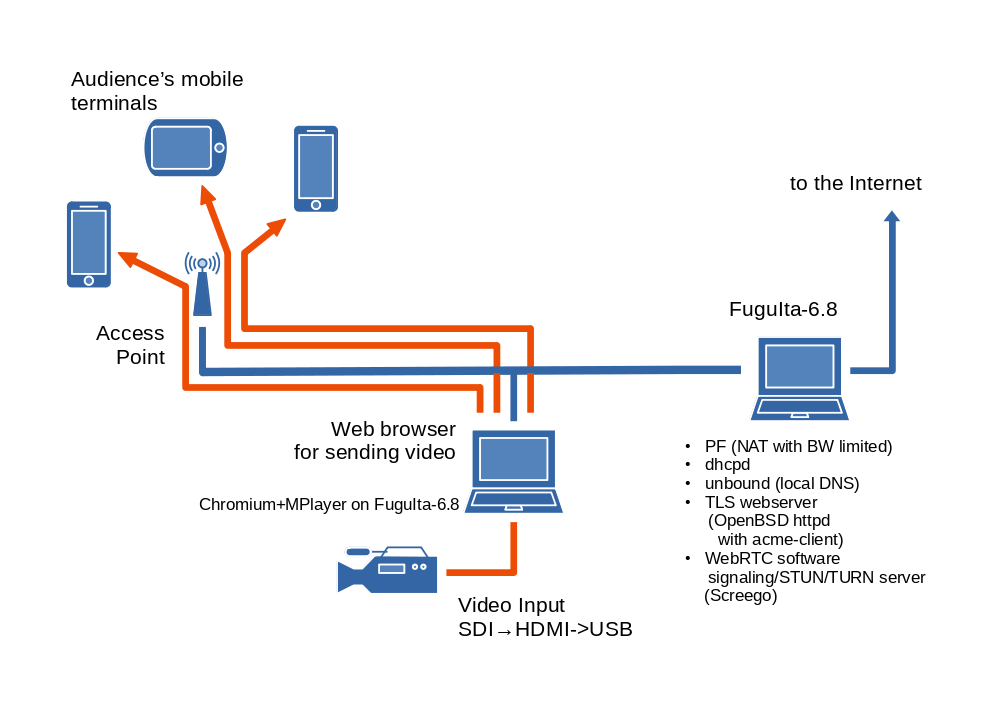

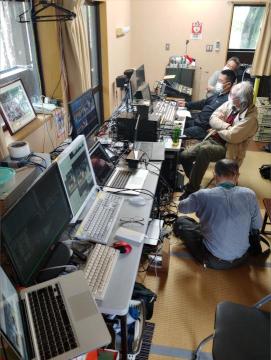

In Niigata Prefecture, where I live, there is a traditional event called "Ushi no Tsuno Tsuki" ("Poke of bull horns" - bullfighting).
The first event of the year was held on April 29th, and I participated as a member of the team that delivered the video.
I was in charge of delivering the video directly to the smartphones and tablets of the audience at the event.
In this event, the MC and the remote guest interact via ZOOM, and the purpose of my job was to show the audience what was going on.
This was my first attempt at this, and the followings are required.
To achieve this, I made the following choices
Based on the above conditions, you will need the following
All of the above features are available in OpenBSD from the start, except for the web browser and WebRTC. So I decided to use #FuguIta as a base for implementing these.
For the video distribution software, We used Screego. Conveniently, Screego is supplied as an executable binary for OpenBSD.
Furthermore, this network is not completely independent and needs to remain in communication with the Internet. This is because smartphones communicate with sites on the Internet to determine the status of the network. If there is no communication with the Internet, the smartphone will complain. In addition, time synchronization is required for TLS communication, and therefore, NTP must be available. For these purposes, I decided to create a NAT in PF. I decided to limit the bandwidth of the communication through the NAT, because the main purpose of this Internet access line is to upload the video of the event to YouTube, and to communicate with the remote performers via ZOOM.
Based on the above, I decided to configure and operate the network as follows.
 |
| Network of this event (click to enlarge) |
As for the web browser for the video distribution, We had originally planned to use Windows, but since the title bar of the window was displayed on the video to be distributed, and the video input with an aspect ratio of 16:9 was somehow changed to 4:3, I decided to use FuguIta for this purpose as well, and use MPlayer to convert the aspect ratio of the video to 16:9 and send it by Chromium.
The operation of the day is as follows.
 |  |
| Operation Booth | Screego Server |
 |  |
| WiFi Access Point | Video Sender |
As a result, it worked as planned, but there were a few problems.
We will need to improve on these issues in the future.
This time, I planted a monitor script modified from SAG in both the Screego server and the browser for sending images, so We will analyze the logs and plan countermeasures.
Mel (2021-04-27 (Tue) 15:35:18)
i try to follow how to setup development for #FuguIta from this JPN page "河豚板の開発ツールを使う - LiveDVDのカスタマイズと作成".
i download the construction tool tools-6.8-amd64.tar.gz. there is .ffsimg file (media/fuguita-6.8-amd64.ffsimg).
i understand this is for OpenBSD 6.8, if i want 6.9 this ffsimg should be updated. but, my question is, how do you create this .ffsimg file for each new release of OpenBSD?
Above is the standard procedure to setup the content of *.ffsimg, and may have any variations by every OpenBSD release.
And also, it may possibly vary anymore at your case.-- kaw 2021-04-28 (Wed) 05:40:16
- kaw-sama thanks for sharing how to create the .ffsimg. lot of work. thanks for all your work with #FuguIta. -- Mel 2021-04-28 (Wed) 07:42:24
m3th (2021-04-24 (Sat) 18:32:09)
Can I syspatch to #FuguIta?
-- kaw 2021-04-25 (Sun) 13:20:46
kaw (2021-03-23 (Tue) 18:01:06)
Prototyped a trial version of #FuguIta based on OpenBSD-current (6.9-beta).
It is only available for the amd64 architecture.
Get it from "test" directory on download mirrors.
Your trial reports are welcome.
kaw (2021-02-16 (Tue) 19:00:58)
Two new mirror servers in Europe are now in operation.
They are de.dl.fuguita.org and fr.dl.fuguita.org, the successors to eu.dl.fuguita.org.
eu.dl.fuguita.org will be out of service in a few weeks.
I would like to express our sincere gratitude to the administrators of eu.dl.fuguita.org and everyone who are providing the mirror servers.
(2021-01-30 (Sat) 07:41:07)
I can use a second monitor with OpenBSD. I cannot use a second monitor with #FuguIta.
r600_cp: Failed to load firmware "radeon/SUMO2_pfp.bin" [drm] *ERROR* Failed to load firmware! drm:pid0:radeondrm_attachhook *ERROR* Fatal error during GPU init drm0 detached radeondrm0 detached
I saved settings after downloading the firmware, rebooted, and do have "/radeon/SUMO2_pfp.bin". I assume this error happens because the boot process executes the GPU init before I can choose boot mode 3. Is there an easy way to fix this error, myself?
Sorry. I am inexperienced with BSD (and computers).
# gzip -dc /sysmedia/bsd-fi.mp > bsd-fi.mp # vnconfig vnd0 bsd-fi.mp # mount /dev/vnd0a /mnt # mkdir -p /mnt/etc/firmware # (copy radeon's firmwares under /mnt/etc/firmware) # umount /mnt # vnconfig -u vnd0 # mount -uw /sysmedia # gzip -c9 bsd-fi.mp > /sysmedia/bsd-fi.mp # mount -ur /sysmedia
-- kaw 2021-02-01 (Mon) 09:21:51
kaw (2021-01-09 (Sat) 23:04:26)
Recently, I found reviews and tutorial videos about #FuguIta on the net, so I will introduce them.
- a review by Solène Rapenne
- a review by Jesse Smith (Distrowatch.com)
- DistroWatch Weekly, Issue 895 - "Feature Story - FuguIta 6.8"
- tutorial videos by Zen_Floater2
I am deeply grateful to the authors of these articles.
kaw (2020-11-03 (Tue) 23:37:38)
Tools to create a live system based on OpenBSD 6.8 were uploaded at tools directory.
To use this tool, refer the article 河豚板の開発ツールを使う - LiveDVDのカスタマイズと作成 (LiveDVD - Using FuguIta development tools) in the page 河豚板ガイド (FuguIta Guide).
Fugu (2020-10-24 (Sat) 22:05:09)
Hello kaw:
Any chance of getting #FuguIta working with ventoy at www.ventoy.net/en/index.html.
No pressure - just asking since Fugu's broader goals align with such a tool.
Thank you.
kaw (2020-10-24 (Sat) 00:30:25)
#FuguIta-6.8-i386 and FuguIta-6.8-amd64 are now under test.
These are at test directory at download mirrors.
Your trial report is greatly appreciated.
kaw (2020-09-24 (Thu) 22:13:14)
I'm currently working on a Live Update for #FuguIta LiveUSB.
This is in beta testing.
To update with this utility, place the gzipped ISO image (not the *.img.gz file!) and the MD5 checksum file in the current directory.
Then run the fiupdate command.# cat /usr/fuguita/version 6.7-amd64-202008261 # ls -l total 606528 -rw-r--r-- 1 root wheel 310528773 Sep 24 18:47 FuguIta-6.7-amd64-202009041.iso.gz -rw-r--r-- 1 root wheel 11660 Sep 24 18:47 MD5 # fiupdate 202009041 fiupdate - Live Updater for FuguIta LiveUSB Version/Arch: 6.7/amd64 (FuguIta-6.7-amd64-202008261) Note: This sorftware is now under beta test. Please use this at YOUR OWN RISK. We recommend that you execute this command with fresh boot (boot mode 0 or 1). Or you should quit all application softwares and save all your data before you update this FuguIta device. Are you sure? [y/N] -> y Checking: environment: ok mounts: ok existing files: ok checksum: (MD5) FuguIta-6.7-amd64-202009041.iso.gz: OK all done, OK. extracting FuguIta-6.7-amd64-202009041.iso.gz... 296MiB 0:00:48 [6.12MiB/s] [================================>] 100% ETA 0:00:00 Now ready to update FuguIta-6.7-amd64-202008261 to FuguIta-6.7-amd64-202009041. This machine will reboot immediately after update completed. Do you proceed? [y/N] -> y stopping all daemons... cron(ok) ntpd(ok) pflogd(ok) slaacd(ok) smtpd(ok) sndiod(ok) sshd(ok) syslogd(ok) overwriting uniprocessor kernel... 8.68MiB 0:00:03 [2.31MiB/s] [================================>] 100% ETA 0:00:00 overwriting multiprocessor kernel... 8.71MiB 0:00:03 [2.23MiB/s] [================================>] 100% ETA 0:00:00 overwriting filesystem image... 894MiB 0:04:25 [3.36MiB/s] [================================>] 100% ETA 0:00:00 update completed. now rebooting... syncing disks... done rebooting...We welcome your trial report.
- revised this script, See https://jp1.dl.fuguita.org/test/ . -- kaw 2020-10-05 (Mon) 10:58:51
- #FuguIta-6.7-*-202010071 has this. (Still can't handle tarball, sorry arm64 user) -- kaw 2020-10-16 (Fri) 00:40:20
kaw (2020-09-08 (Tue) 14:07:35)
isotop is a script to configure and customize vanilla OpenBSD into ready-to-use desktop environment.
I have modified isotop to be able to run on #FuguIta.
To run isotop.sh on FuguIta after download it, apply this patchisotop-665-fi.sh.diff .
Then run install script as a root.$ ftp https://framagit.org/3hg/isotop/raw/master/src/isotop.sh $ patch < isotop-665-fi.sh.diff # sh isotop.shHere's a screenshot of FuguIta configured by isotop.
kaw (2020-08-01 (Sat) 03:37:52)
Video of Talk about #FuguIta at OSC2020 Niigata has been published:
https://www.youtube.com/watch?v=4wPSr1WPH3U
And the document is at 河豚板#OSC2020
kaw (2020-07-22 (Wed) 15:27:51)
Open Source Conference 2020 Online/Niigataが7月25日(土)に開催されます。
今回はオンラインでの開催になります。https://ospn.connpass.com/event/181888/ の開催概要ページよりZoom参加に登録頂くか、YouTube Liveにてご視聴下さい。
Open Source Conference 2020 Online/Niigata will be held on Saturday, July 25th.
This event will be held online and I will have a 15 minute talk about #FuguIta in the name of EBUG (Echigo BSD Users Group).
Please register for Zoom participation from the overview page of https://ospn.connpass.com/event/181888/ , or watch it on YouTube Live.
| Time (UTC) | Title | Affiliation | Speaker |
| 06:00-06:15 | Introduction of NetBSD | Japan NetBSD Users Group (JNUG) | Jun Ebihara |
| 06:15-06:30 | Introduction of FuguIta | Echigo BSD Users Group (EBUG) | Yoshihiro Kawamata |
| 06:30-06:45 | Introduction of vyos-cli: VyOS CLIs for Ubuntu | Echigo Network Operators Group (ENOG) | Masakazu Asama (also member of EBUG) |
-- kaw 2020-07-22 (Wed) 23:46:40
Fugu (2020-07-19 (Sun) 15:51:32)
Hello Kaw:
Is there a difference in boot mode of OpenBSD and #FuguIta? I have a Dell PC where OpenBSD is very slow without disabling acpimadt whereas #FuguIta has no such problems.
Any guidance will be gratefully received.
Thank you.
nimbus9 amd64 # diff -u GENERIC RDROOT --- GENERIC Mon Jul 20 12:43:03 2020 +++ RDROOT Mon Jul 20 12:40:08 2020 @@ -49,7 +49,7 @@ option UDF # UDF (DVD) file system option MSDOSFS # MS-DOS file system option FIFO # FIFOs; RECOMMENDED -#option TMPFS # efficient memory file system +option TMPFS # efficient memory file system option FUSE # FUSE option SOCKET_SPLICE # Socket Splicing for TCP and UDP @@ -88,7 +88,7 @@ pseudo-device nmea 1 # NMEA 0183 line discipline pseudo-device msts 1 # MSTS line discipline pseudo-device endrun 1 # EndRun line discipline -pseudo-device vnd 4 # vnode disk devices +pseudo-device vnd 6 # vnode disk devices pseudo-device ksyms 1 # kernel symbols device #pseudo-device dt # Dynamic Tracer @@ -134,7 +134,12 @@ option NTFS # NTFS support option HIBERNATE # Hibernate support -config bsd swap generic +config bsd root on rd0a swap on wd0b and sd0b +option RAMDISK_HOOKS +option MINIROOTSIZE=3800 +option NKPTP=5 + +pseudo-device rd 1 # ramdisk mainbus0 at root nimbus9 amd64 #So I don't know why it behaves differently.
-- kaw 2020-07-20 (Mon) 12:50:48
scanning partitions: cd0a sd0i sd0j FuguIta's operating device(s): cd0a sd0i Which is FuguIta's operating device? [default: cd0a] -> sd0i # in case that sd0 is internal disk
If FuguIta runs slow as OpenBSD with this procedure, the problem could lay on internal disk device. -- kaw 2020-07-21 (Tue) 16:28:11
and one other escaping attention now.
To this end, I started reading through the show and list variables in the UKC config and found that #FuguIta has a lot more that get initialized than vanilla OpenBSD. When that did not work out, I once again disabled acpimadt, installed the operating system and waited for it to boot. The scenario now stood at reordering libraries (library_aslr). I let it complete the first time and then disabled the service via rcctl. This made a dramatic impact on reboot.
Presently, after having run sysupgrade (following -current), the performance is acceptable as good as on a ThinkPad.
My speculation is to do with the execute bit. I haven't read the source code to be certain of this but would appreciate your knowledgeable thoughts on it. I will try the above solution if video and browser performance in unacceptable with my continued testing. -- Fugu 2020-07-21 (Tue) 19:37:36
Former articles are at FuguIta/BBS/9.
Return to Top
